Email UsData-driven precision farming for remote settings lacking terrestrial network infrastructure.
Low-power nodes scattered in the field measure environmental telemetry. Nodes stay in deep sleep to maximize battery longevity.
As the UAV flies its route, it emits a LoRa RF wake command, triggering the dormant nodes to wake up on-demand.
Woken nodes log telemetry locally to MicroSD for redundancy, then transmit the data package back to the UAV via LoRa.
The companion computer (Raspberry Pi 5) on the drone encrypts and compresses the data, routing it via a secure GEO satellite OpenVPN link.
The edge processing server receives the satellite stream, parses the measurements, and updates the farmer's dashboard in real-time.
Remote farmlands lack internet and cellular coverage. Conventional IoT designs need per-sensor cellular connections, making wide deployment uneconomical.

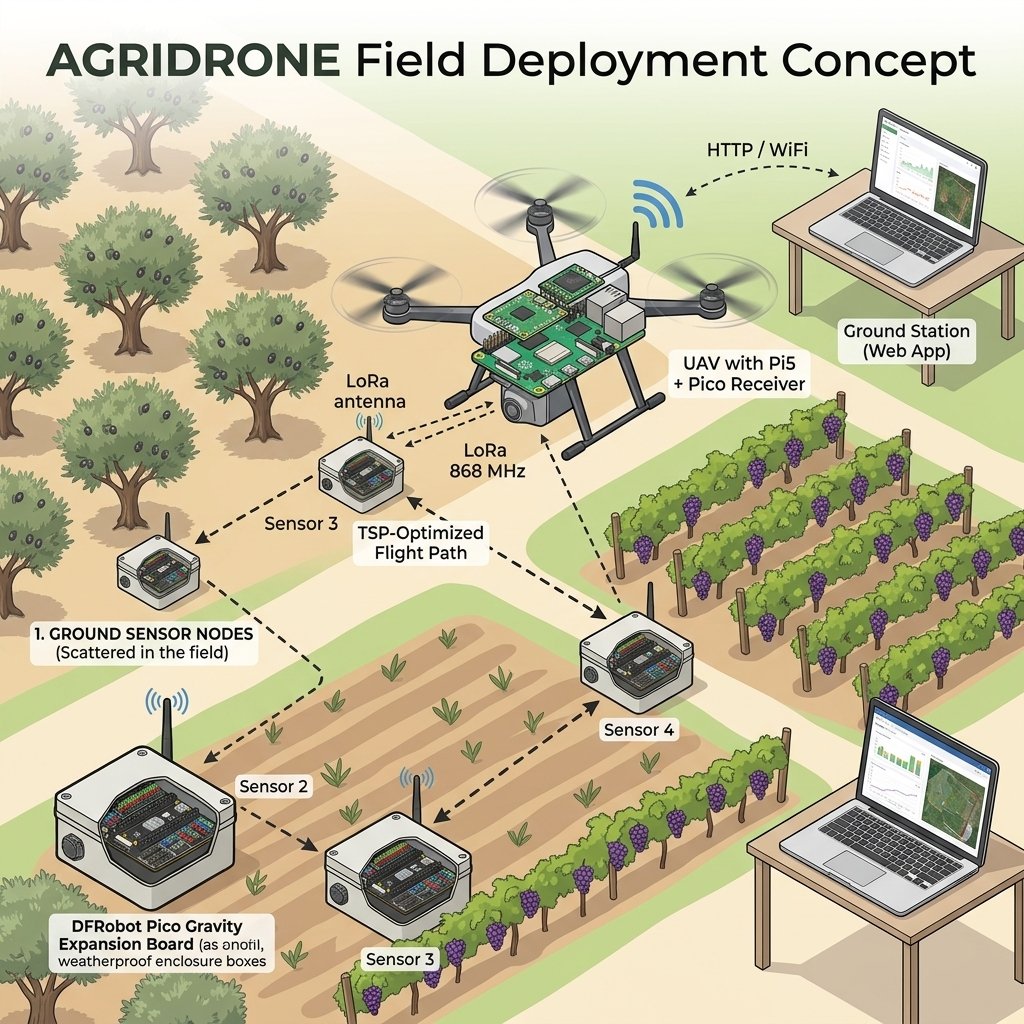

An optimized autonomous UAV flight cycle coordinates with ultra-low-power ground sensors. Sensors stay in deep sleep until the drone emits a LoRa RF wake command, collects telemetry, and forwards it via GEO satellite.
868 MHz LoRa broadcast activates dormant sensors
MicroSD logging ensures data redundancy
HTTP-to-serial middleware on RPi 5
Encrypted OpenVPN tunnels via GEO
Detailed architecture, hardware wiring, and protocol diagrams for the AGRIDRONE platform.

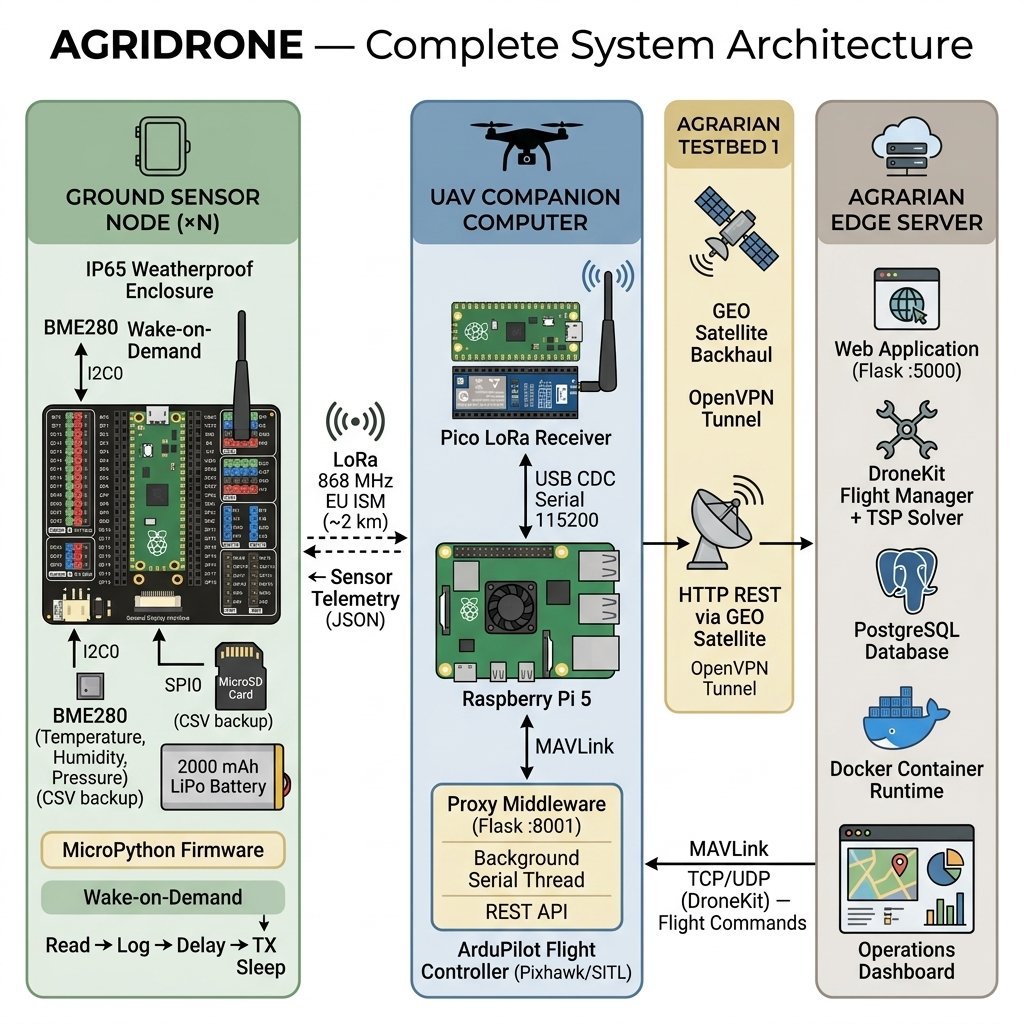

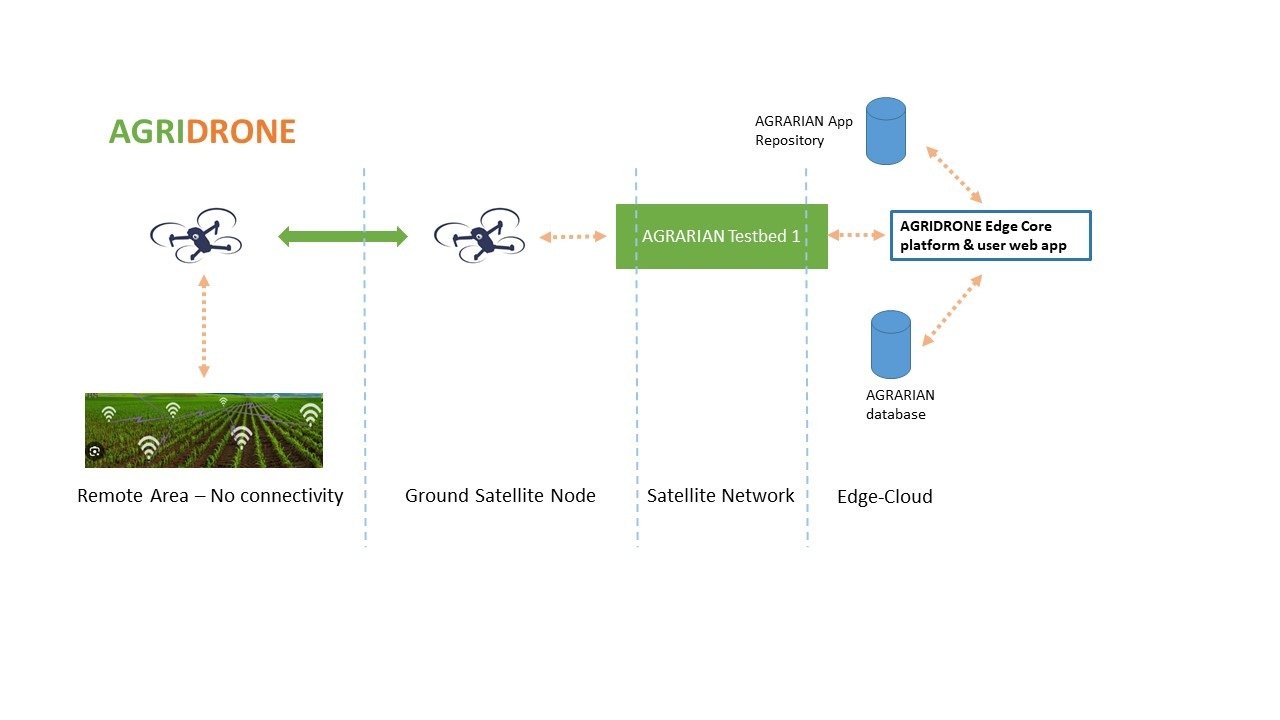

Communication pipeline routing telemetry from deep-sleep sensor nodes through LoRa, RPi 5 companion computer, and GEO satellite relay to the cloud database.

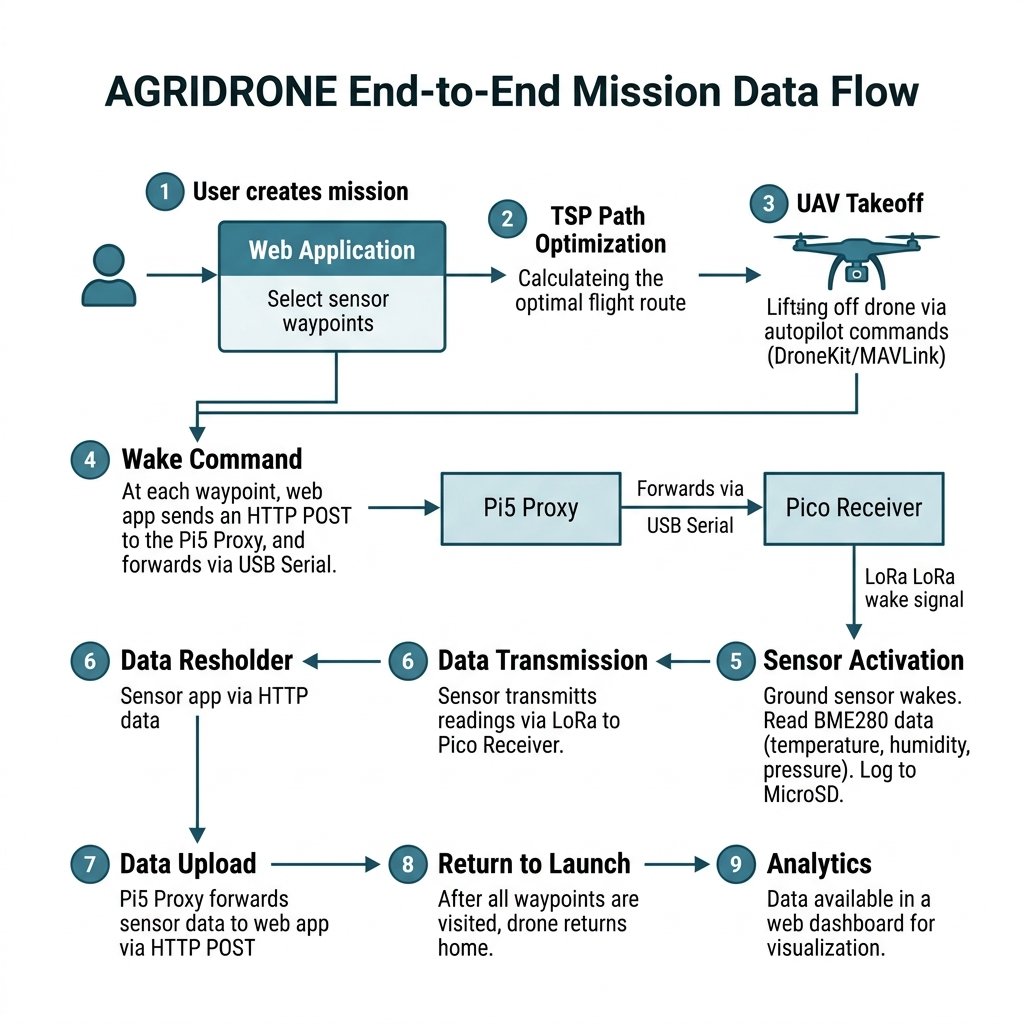

Sequence diagram showcasing the RF LoRa wake-up command trigger, telemetry packet assembly, local logging, and satellite proxy forwarding stages.

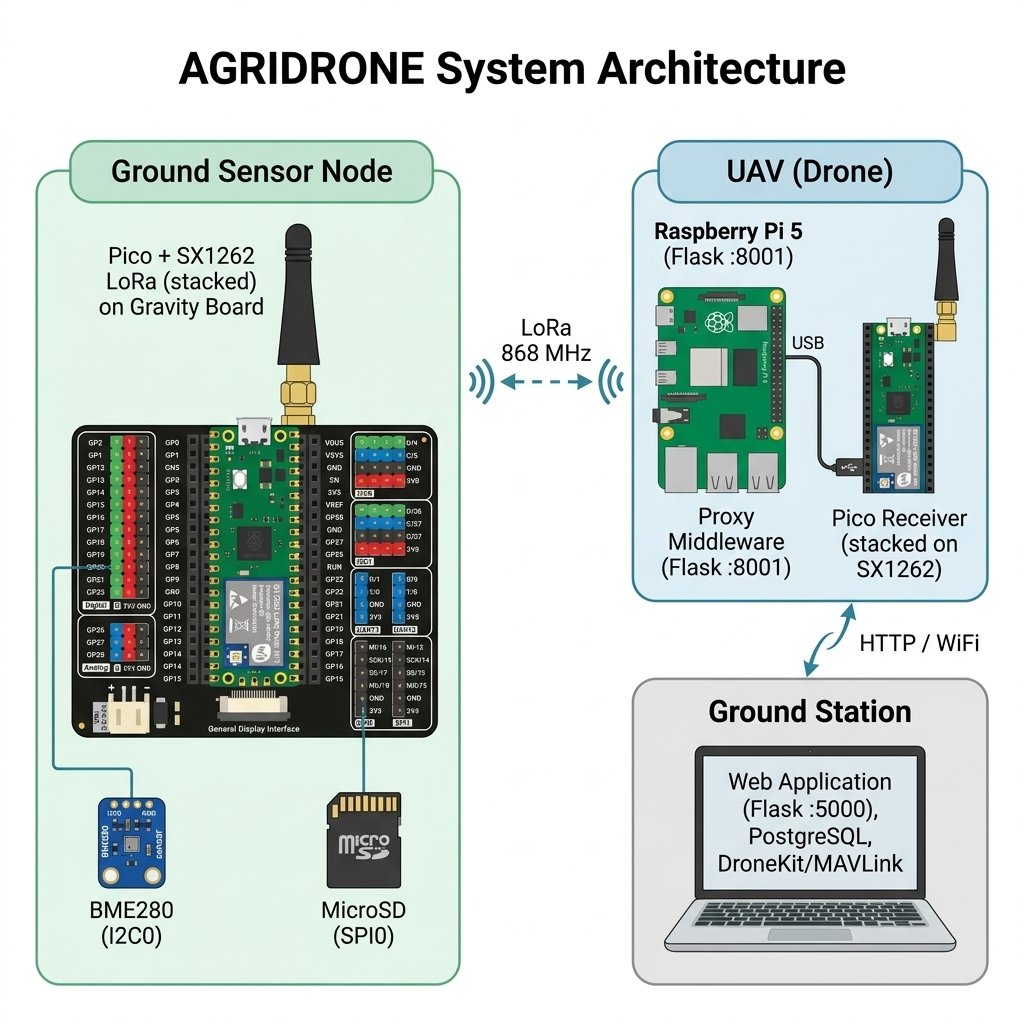

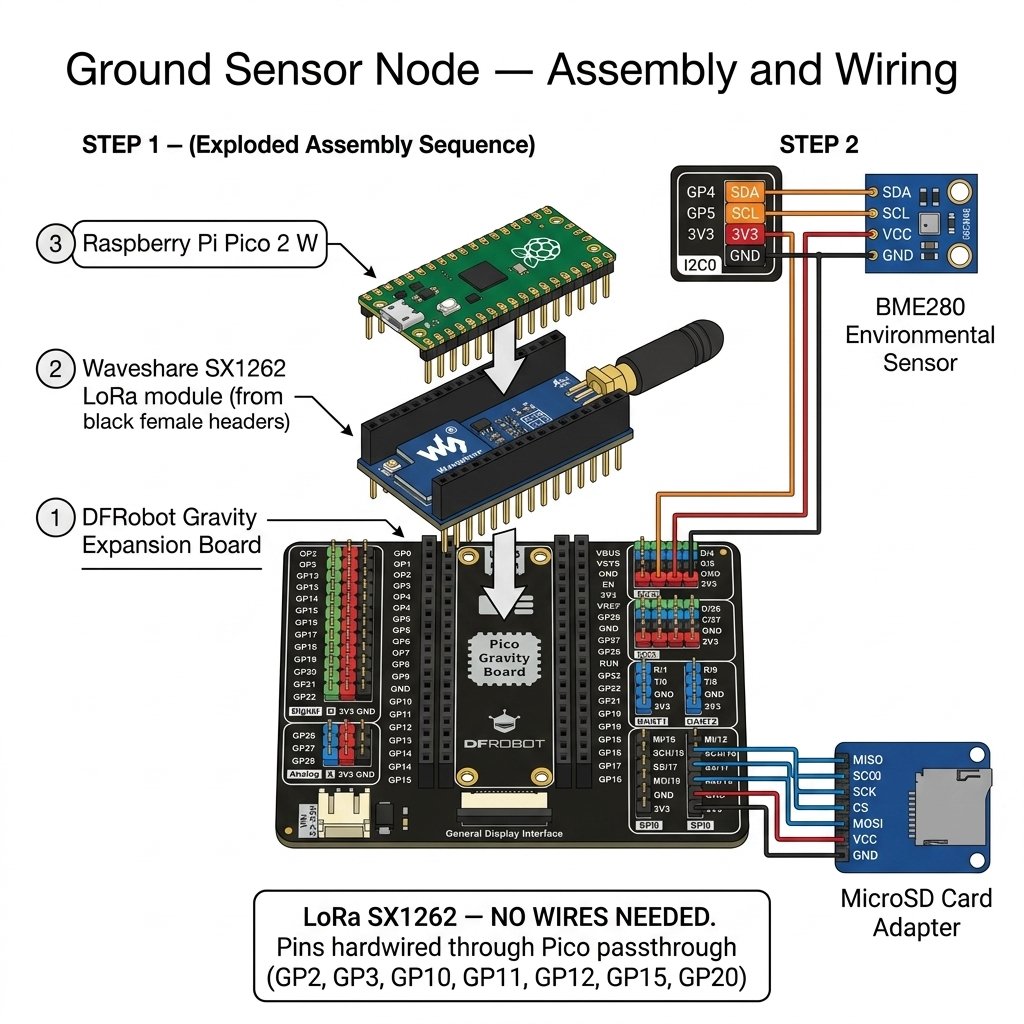

Pico 2 W target board mapping to the SX1262 LoRa module transceiver and BME280 sensor breakout pinouts.
Physical trace routing and double-SPI SPI0/SPI1 bus isolation preventing clock collisions between the LoRa transceiver and MicroSD logger.
M5 Milestone — all operational KPIs met or exceeded
Sensor activation success during UAV passes
Missions completed without intervention
Sensor node operational life
Collection to dashboard visualization
Successful satellite data delivery
Field coverage per flight mission
| Category | Metric | Target | Achieved | Status |
|---|---|---|---|---|
| System Perf. | Wake Success | >95% | 96.5% | Achieved |
| Flight Completion | >90% | 95.2% | Achieved | |
| Sat Transmission | >80% | 99.5% | Achieved | |
| System Uptime | >99.5% | 99.8% | Achieved | |
| Technical | Battery Life | >10 mo | 12+ mo | Achieved |
| Coverage Area | >5 ha | 5.2 ha | Achieved | |
| Data Latency | <30 min | 11 min | Achieved | |
| Dissemination | Website Visitors | 100+ | 85 | In Progress |
| Social Posts | 5+ | 5 | Achieved |
10-month plan from February to November 2026.
Requirements, architecture, protocol definition.
UAV, sensors, satellite integration.
ML models, APIs, application.
Field test, final validation.
